Products for
Medical Device MFR & Lab Automation
Ascent Representatives (ARI) is the Exclusive Authorized Factory Representative for world class true manufacturers of products commonly used in the manufacture and integration of medical devices and laboratory automation equipment. We work closely with local distribution to provide the highest level of support and local product availability.
Our coverage area includes California, Arizona, Nevada and New Mexico (not all lines are represented in all territories).
Binder
-
Binder Connectors for medical applications
For the highly sensitive environment of "Health Care", in addition to the ELC Series 570 with its unique snap-in locking system, we also offer medical-grade versions of three of our industrial snap-in and bayonet connector systems. All four series are grey-white as standard, but other colours can be ordered. Two series have more than 500 mating cycles, two have more than 5,000, which is very important especially in this field. All four series are made of high-quality materials and offer the quality and reliability required in the medical field.
Features:
• Snap-in and bayonet locking.
• Up to 5,000 mating cycles
• IP54 and IP67
• 3 to 12 poles
• Solder and dip solder connections
• High quality materials
• ISO 13485 certified company
• Clearance and creepage distances available on request
• Disinfectant resistance (see brochure connectors for medical applications)
• Biocompatibility (DIN EN ISO 10993-5)
• FDA-compliant for aqueous foodstuffs according to regulation EG596/2009
• DEHP-free (except contacts)
• DIN EN 60601-11 Shock and vibration test
• DIN EN 60601-1 Drop test
Siltec
-
Siltec Stainless Steel Cable Tray
Siltec cable trays excel in medical and lab environments due to their stainless steel construction (AISI 304/316), which resists corrosion and withstands harsh conditions. The trays enable flexible cable management, permitting future adjustments without disassembly.
-
Unique Locking Tray Series Cable Tray - No Cable Ties Reqired!
Cable trays with a lock allow fast cable installation and exchange. At the same time, the cable trays are flexible and the cables are easily accessible during cleaning and inspection.
Cable trays from SILTEC are made of first-class stainless steel that prevents corrosion and ensures a good level of resistance.

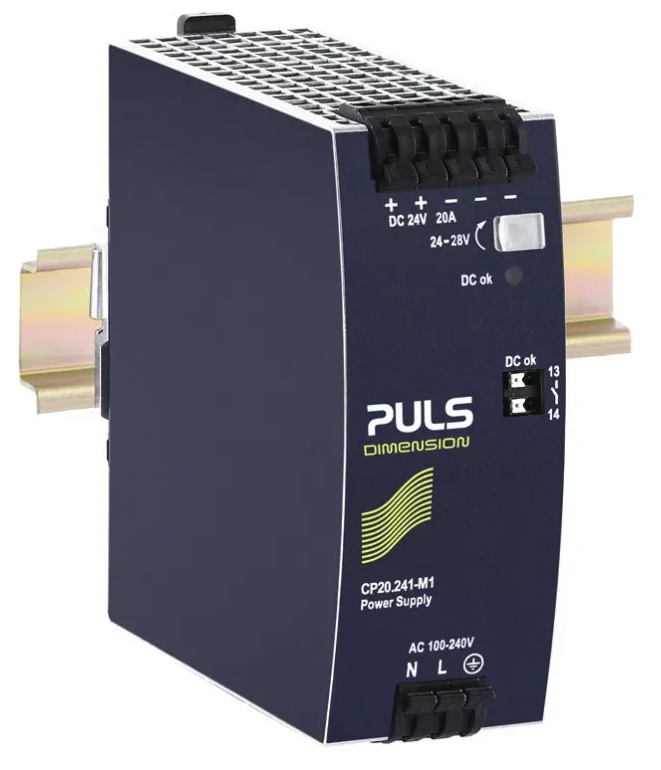

Puls Power Supplies
-
PULS DIN rail power supplies for medical applications
PULS DIN rail power supplies for medical applications are IEC 60601-1 (3rd edition) certified, durable, continuously convection cooled and absolutely quiet.
In medical technology applications, the space for electronics is very limited. At the same time, special approvals and strict safety standards apply. For many manufacturers of medical devices, plug-in or panel-mount power supplies – mainly as a customer-specific solution – have so far been the only option. With the medical power supplies of the CP Series PULS offers an advanced alternative: users receive an efficient standard power supply that meets the highest technological standards and is permanently available from stock. The high industrial standard has many advantages.
Maximum protection for patients and operators
IEC 60601-1, 3rd Edition
IEC 60601-1 formulates the requirements for electrical safety, in particular relating to protective measures for patients and operators.
2 MOPP (Means Of Patient Protection)
A duplicate measure for patient protection.
IEC 60601-1-2, 4th Edition
Product standard for the EMC test on medical devices or systems.
The following PULS power supplies are approved for medical applications:
CP20.241-M1 | DC output: 480W, 24V, 20A
CP10.241-M1 | DC output: 240W, 24V, 10A
CP5.241-M1 | DC output: 120W, 24V, 5A
